Edelbrock 35970 Pro-Flo 4, 4150-Style, Pontiac V8 326-455

#32535970

Edelbrock 35970 Pro-Flo 4, 4150-Style, Pontiac V8 326-455

Name: Edelbrock 35970 Pro-Flo 4, 4150-Style, Pontiac V8 326-455
Brand: Edelbrock
SKU: 32535970
Price: 2591.95 USD
Availability: InStock

Write a Review

Ask a Question

Type:

29 Lb Inj / 450 HP Rated

35 Lb Inj / 550 HP Rated

$2,591.95

/kit

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Multi-port Injection Style, 1000 CFM CFM, ECM Included

See more details

Key Specs

Injection Style	Multi-port
CFM	1000 CFM
Injector Size	29 lbs./hr.
Max Horsepower Rating	450
ECM Included	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 35970 Details

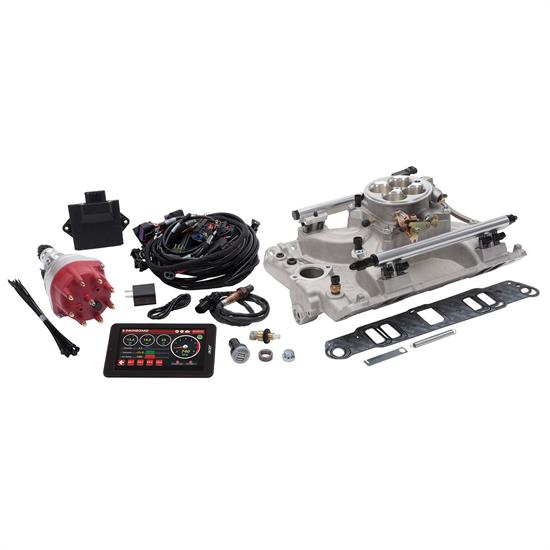

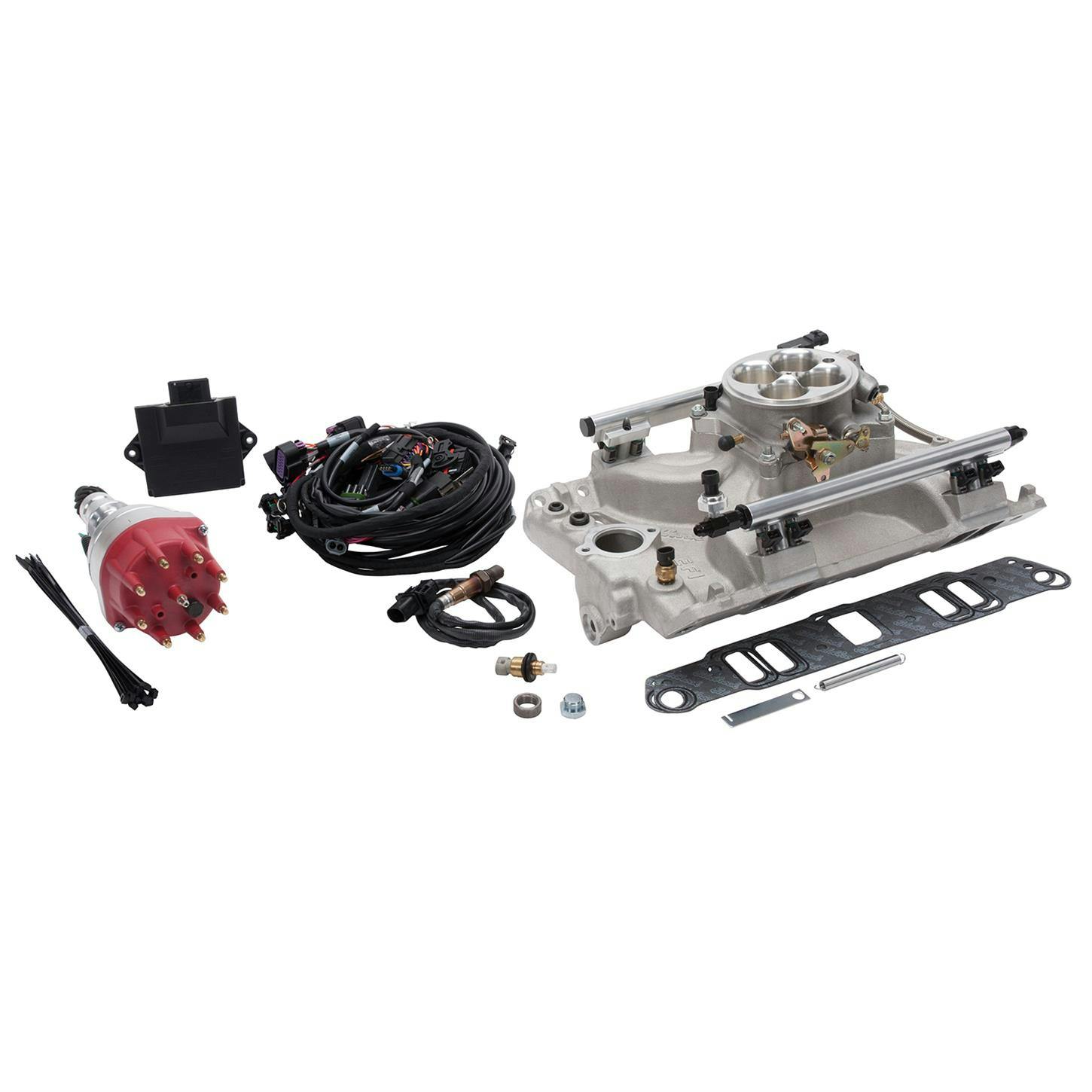

The Edelbrock part # 35970 Pro-Flo 4 EFI System for Pontiac 326-455 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android-based smart phone or tablet. Multiple dash displays are included to allow you to monitor engine vitals with an Android smartphone or tablet. Pro-Flo 4 does not require laptop tuning.

Edelbrock 35970
Pro-Flo 4 EFI System
29 Lb/Hr Injectors
Capable of 450 HP
Tablet not included
Pontiac 326-455

Charts

Installation Instructions (PDF)

Guides & Documents

Fuel Injection Systems Installation Instructions (32535970)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Edelbrock 35970 Specifications

KEY SPECS
MFG. Part #	35970
Brand	Edelbrock
Injection Style	Multi-port
CFM	1000 CFM
Injector Size	29 lbs./hr.
Max Horsepower Rating	450
ECM Included	Yes

GENERAL
User Tunable	Yes
Self Tuning	Yes
Injectors Included	Yes
Intake Manifold Included	Yes
Intake Section Included	Complete
Metering Style	Speed density
EGR	No
Throttle Body Included	Yes
Throttle Body Material	Aluminum
Throttle Body Finish	Natural
Throttle Body Flange Type	4-Barrel Square Bore
Intake Material	Aluminum
Intake Finish	Natural
Venturi Quantity	4
Fuel Pump Included	No
Fuel Rails Included	Yes
Calibration Module Included	Yes
Wiring Harness Included	Yes
Fuel Pressure Regulator Included	No
Distributor Included	Yes
MAP Sensor Included	Yes
IAC Motor Included	Yes
IAT Sensor Included	Yes
TPS Sensor Included	Yes
Venturi Diameter	44.45mm
Notes	Android or IOS tablet or smart phone needs to be used for a wireless Bluetooth connection to the ECU. (Not Included)
GTIN Code	085347359707
Sold in Quantity	Kit

Ratings & Reviews

Be the first to write a review.

Fitment

1959-1962 Pontiac Bonneville

389 Pontiac V8

1963-1966 Pontiac Bonneville

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Bonneville

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Bonneville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Bonneville

400 Pontiac V8

1959-1960 Pontiac Catalina

389 Pontiac V8

1961-1966 Pontiac Catalina

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Catalina

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Catalina

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Catalina

400 Pontiac V8

1967 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1968 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1969 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1967 Pontiac Firebird

326 Pontiac V8
400 Pontiac V8

1968-1969 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1970-1976 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1978-1979 Pontiac Firebird

400 Pontiac V8

1973-1975 Pontiac Grand Am

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8

1962 Pontiac Grand Prix

389 Pontiac V8

1963-1966 Pontiac Grand Prix

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Grand Prix

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1971 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1974 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8

1971-1974 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand Safari

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Grand Safari

400 Pontiac V8

1971 Pontiac Grandville

Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1975 Pontiac Grandville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1964-1965 Pontiac GTO

326 Pontiac V8
389 Pontiac V8
421 Pontiac V8

1966 Pontiac GTO

389 Pontiac V8

1967-1969 Pontiac GTO

400 Pontiac V8

1970-1971 Pontiac GTO

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1973 Pontiac GTO

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1963-1966 Pontiac LeMans

326 Pontiac V8
389 Pontiac V8

1967 Pontiac LeMans

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1976 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1977 Pontiac Phoenix

350 Pontiac V8

1959-1962 Pontiac Star Chief

389 Pontiac V8

1963-1966 Pontiac Star Chief

389 Pontiac V8
421 Pontiac V8

1961-1962 Pontiac Tempest

389 Pontiac V8

1963-1966 Pontiac Tempest

326 Pontiac V8
389 Pontiac V8

1967 Pontiac Tempest

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1960 Pontiac Ventura

389 Pontiac V8

1961 Pontiac Ventura

389 Pontiac V8
421 Pontiac V8

1971-1977 Pontiac Ventura

350 Pontiac V8
